INTSUPERMAI Industrial Coolant Oil Skimmer Oil Water Separator Coolant Filtration System for CNC Machine, Tool 0-13.2gal/H, Coolant Recycling System for Cutting Fluid & Metalworking 110V

Cutting fluid is a basic necessity when machining workpieces using machine tools. The oil-water separator could separate floating oil from cutting fluid, thus greatly extending the service life of the cutting fluid. Meanwhile, it extends the service life of cutting tools, ensures machining accuracy, and protects the working environment and employees' health. It has the characteristics of fast oil recovery, good separation effect, wide application range and convenient use. Product Parameters Voltage: AC110V Power: 25W Oil recovery capacity: 0-13.2gal/H (0-50L/H) Allowed particle size: 0.08" (2.0mm) Water tank capacity: 2.6gal (10L) Water inlet pipe inner diameter: 1/2"(12.7mm) Return pipe inner diameter: 3/4"(19.05mm) Oil drain pipe inner diameter: 3/4"(19.05mm) Adapt to pH value: pH5-11 Liquid temperature: 0-70 ℃ Absorbable viscosity: ≤ 1200 cst Maximum suction range: 0-3.3ft (0-1m) Package size: 20.1"*16.1"*21.3" (51cm*41cm*54cm) Net weight/Gross weight: 28.4lbs(12.9kg)/32.2lbs(14.6kg)

• High-Capacity Oil Recovery System: Efficiently removes floating oil from cutting fluid at 0-50L/H (0-13.2 gal/H), extending coolant lifespan by up to 3x and reducing tool wear in CNC machining operations. Features a 10L (2.6 gal) separation tank with 2mm particle filtration, ensuring cleaner coolant for precision grinding and milling applications

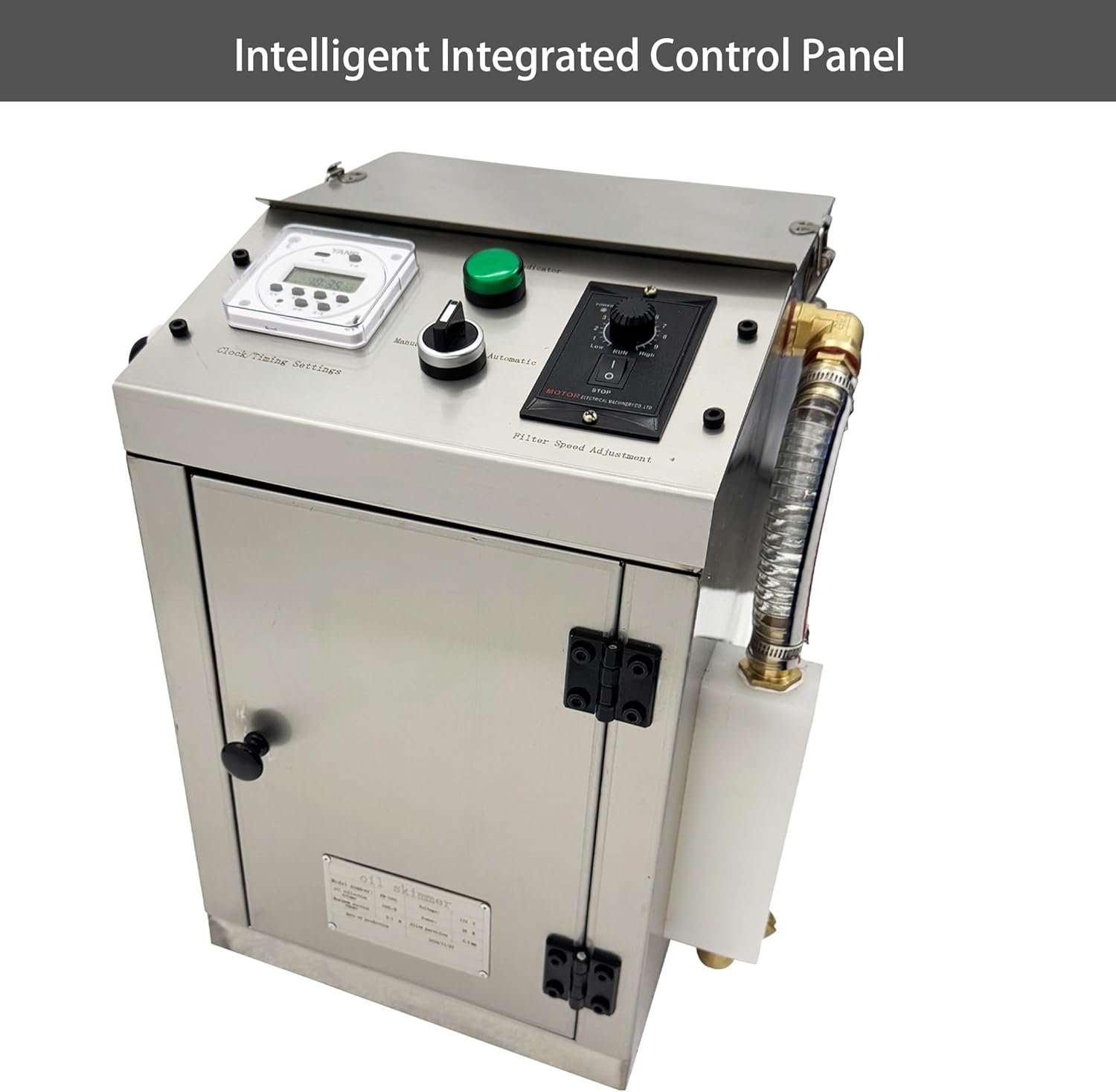

• Intelligent Control & Automation: Equipped with a smart control panel for adjustable speed, manual/automatic modes, and timed operation. Compatible with cutting fluids at pH5-11 and 0-70°C, ideal for heavy-duty industrial environments like metalworking shops and CNC tool maintenance
• Durable Multi-Purpose Design: Handles high-viscosity fluids (≤1200 cst) and operates at 110V/25W for energy efficiency. Includes 1/2" inlet and 3/4" return/drain ports for seamless integration with coolant tanks, lathes, and grinding machines. Built-in purge valve prevents sludge buildup, maintaining system efficiency
• Environmental & Operational Safety: Reduces waste oil disposal costs by through recyclable oil drainage
• Broad Industrial Compatibility: Supports diverse applications: CNC machining centers, hydraulic systems, and metal stamping lines. Maximizes cutting tool accuracy with ±0.1mm tolerance retention, validated in high-pressure (30MPa) PCP compressor and ship engine maintenance scenarios
